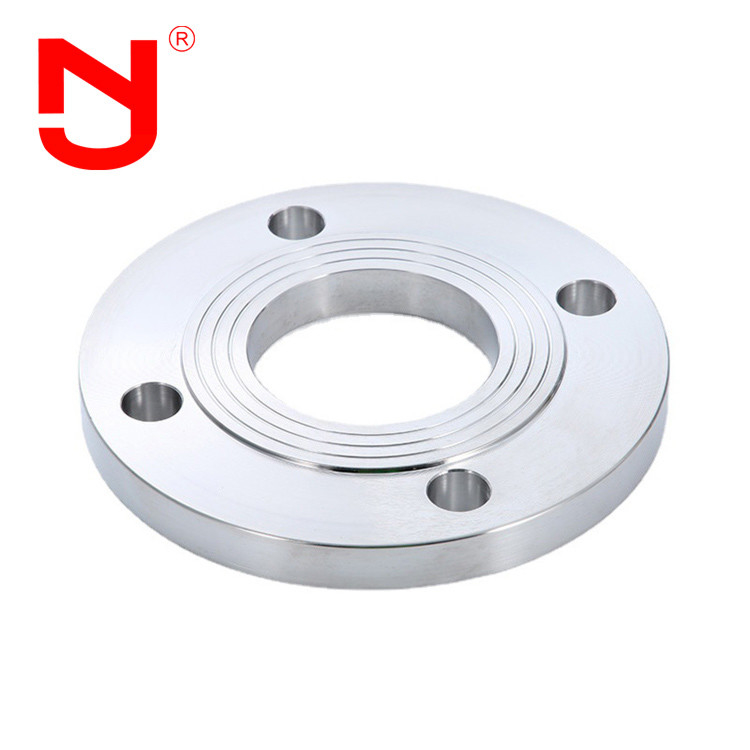

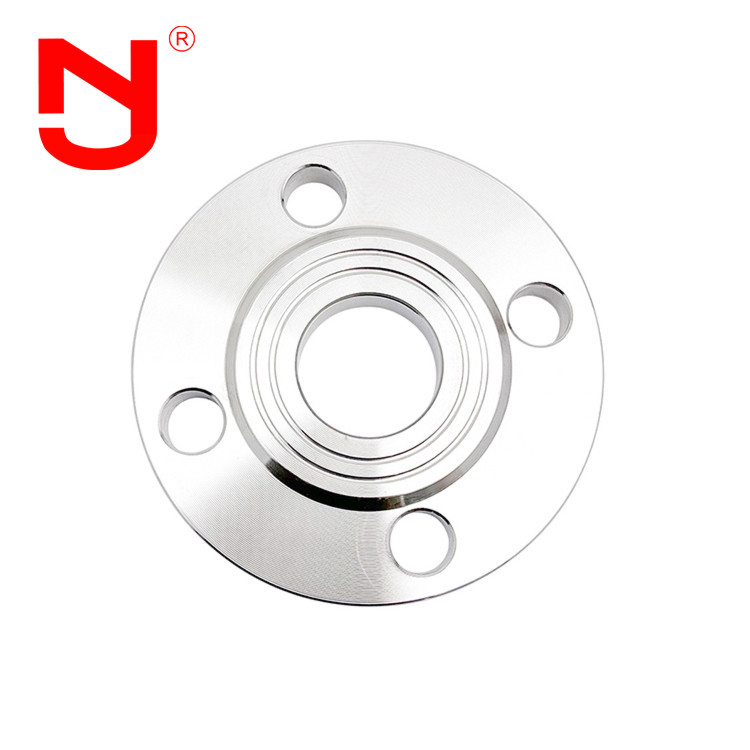

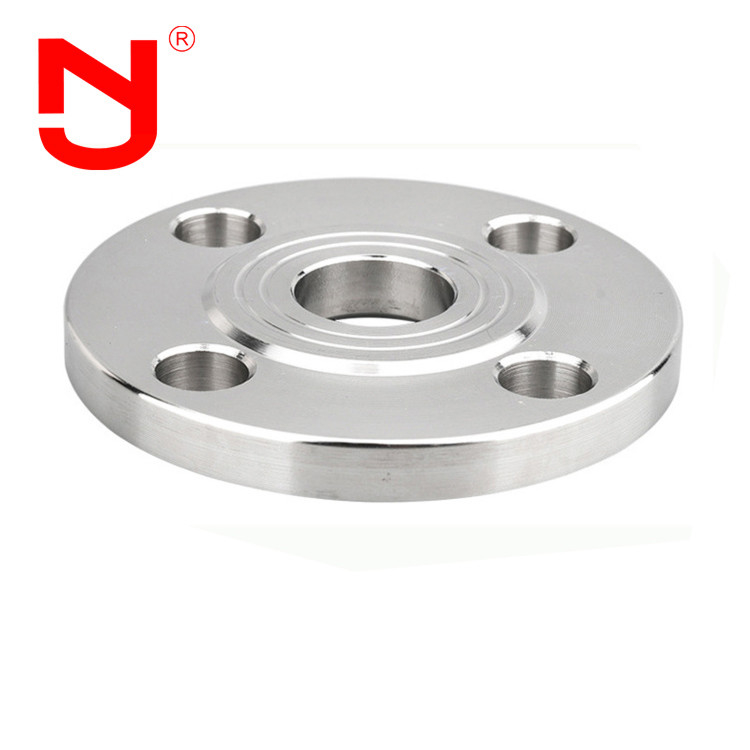

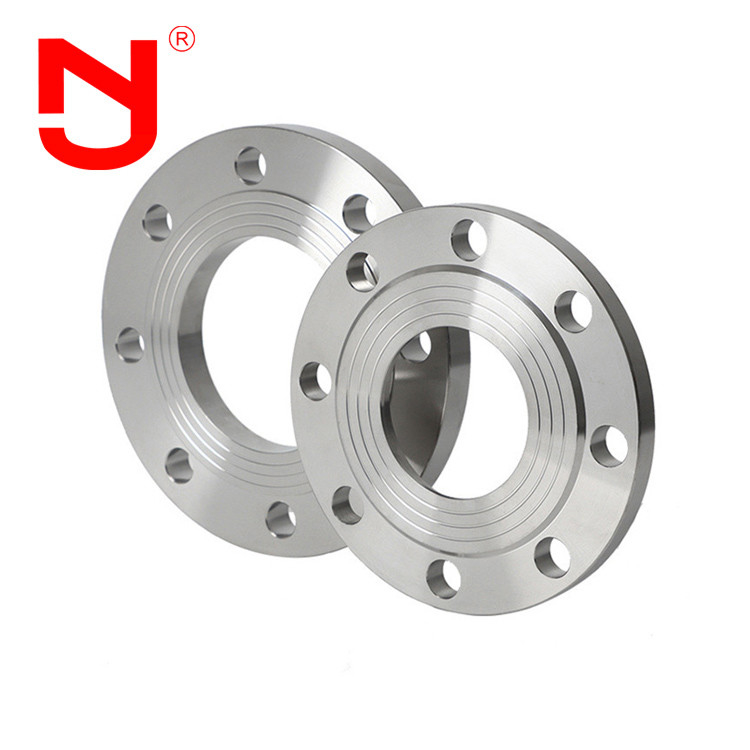

SS304 High Temperature Resistance Excellent Sealing Performance Steel Plate Flange
Steel plate flange is a mechanical connection component composed of flange, sealing gasket, and bolts, which is used to tightly connect two adjacent pipelines or equipment together. The connection surface of a flat welding flange is flat, so it is also called a flat flange. Its advantages are simple structure, easy installation, a certain buffering effect on pipeline vibration and displacement, good sealing performance, and suitable for connection of low-pressure, low-temperature, and non corrosive media.
Performance of Steel Plate Flange
The characteristics of steel plate flanges mainly include:
Product Parameters
Steel plate flange are not a one-type-fits-all sort of solution. Sizing aside, matching the ideal flange design to your piping system and intended usage will help to ensure reliable operation, a long service life, and optimal pricing.
| Flange type(Typ) as in parameter table | |||
|
01 |
flat face slip on flange | 13 | pipe threaded flange |
| 02 | loose plate flange with weld-on plate collar | 21 | integral flanges |
| 04 | loose plate flanges with weld-neck collar | 32 | weld-on plate collars |
| 05 | high hub blind flange | 33 | lapped pipe ends |
| 11 | raised face weld neck flange | 34 | weld-neck collars |
| 12 | raised face socket weld flange | ||
Steel Plate Flange details show.
Do you know how is a high quality Steel Plate Flange made?Let's see with JINGNING.
Our Services
1.24-hour online
2.Free samples provided
3.Support customization
4.Provide drawings
5.Multiple payment styles to choose from
6.Factory inspection (material, specifications, quantity, pressure, packaging)
7.Long warranty period
8.Suitable packaging for transportation
Steel Plate Flange Application
Steel plate flange are commonly used for industrial, commercial, and institutional application. Steel pipe flanges are available in variety of styles and pressure classes. Steel plate flange are classified from 150 to 2500 # rating. In addition to specifying pressure class, certain flanges such as weld neck flange & socket weld flange also require specifying the pipe schedule. This ensures the pipe bore will match the bore of the weld neck or socket weld flange.
Our Advantage
FAQ
Q1:Can the steel plate flange be marked with customized logo?
A1:Yes,it can be marked with your logo. We could provide OEM&ODM service.
Q2:What’s the package?
A2:The package is carton box and strong plywooden case.
Q3:Can you provide drawings?
A3:Yes,we could provide drawings for you.Please contact us to get the drawing of steel plate flange.
Q4:What certificates of steel plate flange can you provide?
A4:We could provide CE,ISO certificate.
